Model Number : | OY2-PP125-TWZ |
Price : | negotiable |
Payment Terms : | T/T,Western Union |
Supply Ability : | 20000pcs per day |
Delivery Time : | 5-7 working days |
Technical parameters
Picture | Item No. | Wheel material | Wheel diameter | Wheel width | Load capacity | Setting height | Threaded stem size | Bracket thickness |
![]() | OY2-PP75-TWZ | PP | 75mm | 32mm | 90kg | 105mm | 12*25mm | 2.3 |
OY1-PP100-TWZ | PP | 100mm | 32mm | 100kg | 128mm | 2.3 | ||
OY1-PP125-TWZ | PP | 125mm | 32mm | 110kg | 149mm | 2.3 |

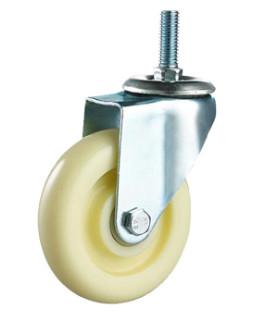

Features :
5 inch diameter with 32mm tread width,hard PP caster to runs smoothly and easily . Perfect for outdoor use ,carpet or rough ground .
Double ball bearing and thick housing to support 110kgs / piece and 4 pcs will load round 300 kgs
Galvanized zinc top plate and housing ,anti corrosion and not easy to rust
Description :
Diameter: 5 inch /125mm
Wheel tread width:32mm
Load capacity:110kgs/piece
Total height:150mm
Stem size:12*25mm
Steel bracket thickness:2.3mm
Top plate thickness:3.0mm
Bearing : precision double ball 6001 type
![]() |
